| Specification of ATMEGA32C1-15AZ | |
|---|---|
| Status | Active |
| Series | Automotive, AEC-Q100, AVR? ATmega |
| Package | Tape & Reel (TR),Cut Tape (CT),Digi-Reel? |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | CANbus, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Number of I/O | – |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 11x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 125C (TA) |
| Mounting Type | Surface Mount |

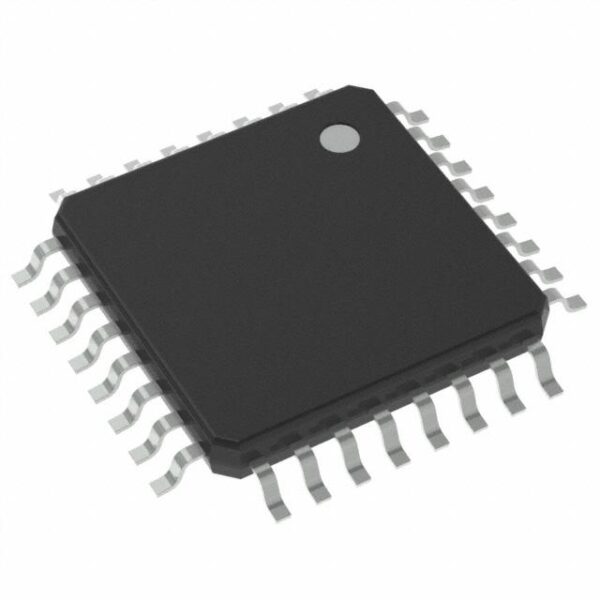

| Package / Case | 32-TQFP |
| Supplier Device Package | 32-TQFP (7×7) |
Applications
The ATMEGA32C1-15AZ is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and precision.
- Consumer Electronics: Ideal for smart home devices due to its low power consumption and robust performance.
- Medical Devices: Suitable for portable medical equipment where size and battery life are critical.
- Automotive Systems: Can be found in vehicle diagnostics and infotainment systems.
- Embedded Systems: Commonly used in embedded applications that demand efficient processing and low power usage.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Performance:** The ATMEGA32C1-15AZ offers fast processing speeds and high memory capacity.
2. **Unique Architecture Feature:** It includes a built-in analog-to-digital converter (ADC) with high resolution.
3. **Power Efficiency:** Designed with energy-saving features, it can operate efficiently at lower voltages.
4. **Certification Standards:** Meets international safety and quality standards, ensuring reliable operation in diverse environments.
Frequently Asked Questions
Q1: What is the maximum operating frequency of the ATMEGA32C1-15AZ?
A1: The maximum operating frequency is up to 16 MHz.
Q2: Is the ATMEGA32C1-15AZ compatible with other microcontrollers from the same series?
A2: Yes, it is fully backward compatible with other ATMEGA series microcontrollers, allowing easy integration into existing designs.
Q3: In which specific scenarios would you recommend using the ATMEGA32C1-15AZ over other microcontrollers?
A3: The ATMEGA32C1-15AZ is recommended for applications requiring both high performance and low power consumption, such as in portable medical devices and automotive diagnostics.
Other people’s search terms
– ATMEGA32C1-15AZ specifications
– ATMEGA32C1-15AZ applications
– ATMEGA32C1-15AZ features
– ATMEGA32C1-15AZ certification
– ATMEGA32C1-15AZ performance
