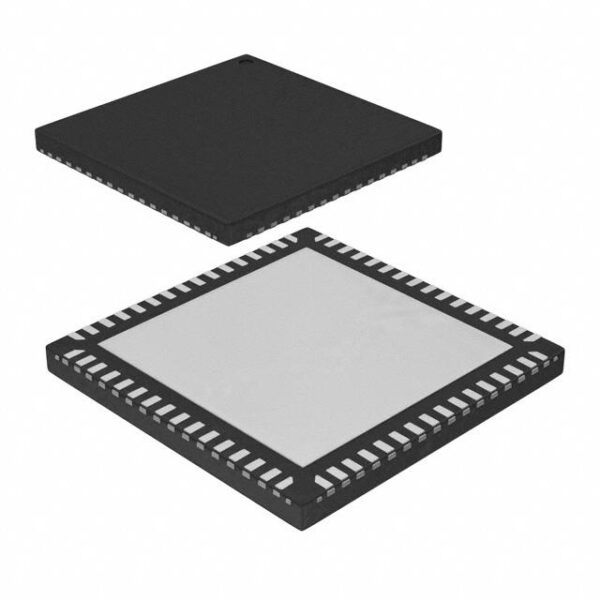

| Specification of ATMEGA329PV-10MNR | |
|---|---|
| Status | Active |
| Series | AVR? ATmega |
| Package | Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT),Digi-Reel? |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 10MHz |
| Connectivity | SPI, UART/USART, USI |
| Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
| Number of I/O | 54 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-QFN (9×9) |
Applications
The ATMEGA329PV-10MNR is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and robust performance.
- Consumer Electronics: Ideal for small electronic devices like smartwatches and fitness trackers due to its low power consumption.
- Automotive: Suitable for automotive electronics where space and energy efficiency are critical.
- Medical Devices: Can be found in portable medical equipment that needs precise timing and low power operation.
- Embedded Systems: Commonly used in embedded systems where it provides reliable processing capabilities within limited resources.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Performance Microcontroller:** Equipped with a powerful 8-bit microcontroller designed for efficient execution of complex tasks.
2. **Advanced Memory Management:** Features enhanced memory management options including multiple RAM sizes and types.
3. **Power Efficiency:** Optimized for low-power consumption, making it ideal for battery-operated devices.
4. **Certification Standards:** Meets stringent industrial and commercial standards ensuring reliability and safety.
Frequently Asked Questions
Q1: What is the maximum clock frequency supported by the ATMEGA329PV-10MNR?
A1: The ATMEGA329PV-10MNR supports a maximum clock frequency of up to 16 MHz.
Q2: Is the ATMEGA329PV-10MNR compatible with other microcontrollers from the same series?
A2: Yes, it is fully compatible with other microcontrollers from the same series, allowing for easy integration into existing projects.
Q3: In which specific scenarios would you recommend using the ATMEGA329PV-10MNR?
A3: The ATMEGA329PV-10MNR is recommended for applications requiring both high performance and low power consumption, such as in portable medical devices and consumer electronics.
