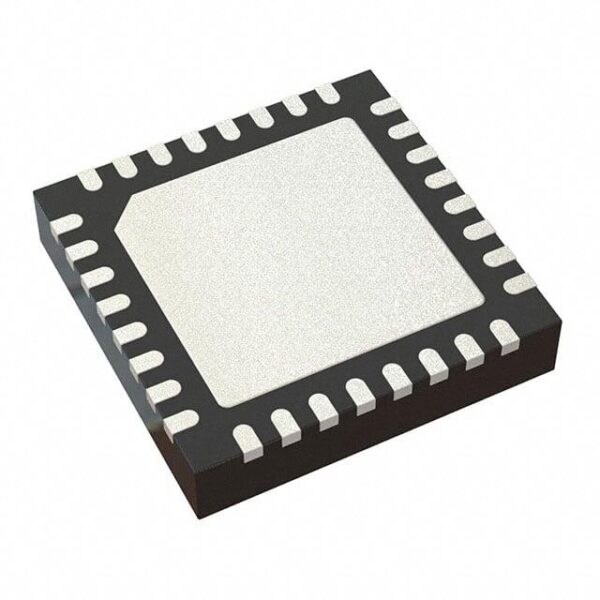

| Specification of ATMEGA328PB-MNR | |
|---|---|
| Status | Active |
| Series | AVR? ATmega, Functional Safety (FuSa) |
| Package | Tape & Reel (TR),Cut Tape (CT),Digi-Reel? |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | IC, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 27 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VFQFN (5×5) |
Applications
The ATMEGA328PB-MNR is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and robustness.
- Consumer Electronics: Ideal for smart home devices due to its low power consumption and efficient performance.
- Medical Devices: Suitable for portable medical equipment where size and battery life are critical.
- Automotive Systems: Employed in vehicle diagnostics and infotainment systems.
- Embedded Systems: Commonly found in embedded control applications that demand precise timing and processing capabilities.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Performance Microcontroller:** Equipped with a 16-bit RISC processor running at up to 16 MHz.
2. **Advanced Memory Management Unit (MMU):** Supports virtual memory addressing, enhancing system flexibility and security.
3. **Power Efficiency:** Features a sleep mode that reduces power consumption significantly when the device is idle.
4. **Certification Standards:** Meets international safety and quality standards such as ISO 9001 and CE marking.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the ATMEGA328PB-MNR?
A1: The ATMEGA328PB-MNR operates within a temperature range from -40¡ãC to +85¡ãC.
Q2: Can the ATMEGA328PB-MNR be used in automotive applications?
A2: Yes, it can be used in automotive applications due to its robust design and compliance with automotive safety standards.
Q3: In which specific scenarios would you recommend using the ATMEGA328PB-MNR?
A3: The ATMEGA328PB-MNR is recommended for scenarios requiring high precision and reliability, such as industrial automation systems, medical devices, and consumer electronics with stringent power requirements.
