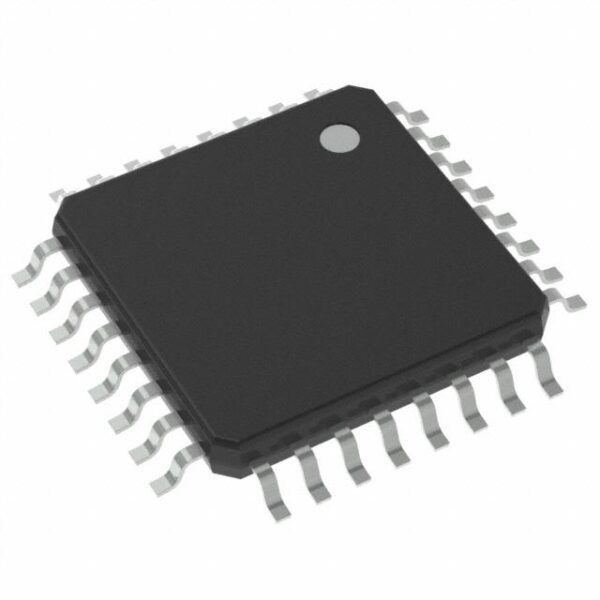

| Specification of ATMEGA328PB-ANR | |
|---|---|
| Status | Active |
| Series | AVR? ATmega, Functional Safety (FuSa) |
| Package | Tape & Reel (TR),Cut Tape (CT),Digi-Reel? |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | IC, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 27 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-TQFP |
| Supplier Device Package | 32-TQFP (7×7) |
Applications
The ATMEGA328PB-ANR is widely used in various applications due to its robust performance and reliability. Here are some key areas:
- Industrial Automation: Utilized in control systems requiring high precision and stability.
- Consumer Electronics: Commonly found in smart home devices like thermostats and security systems.
- Medical Devices: Used in portable health monitoring equipment that needs reliable operation.
- Automotive Systems: Employed in vehicle diagnostics and infotainment systems.
- Embedded Systems: Ideal for projects needing a microcontroller with low power consumption and high processing capabilities.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Performance:** The ATMEGA328PB-ANR features a powerful processor capable of handling complex tasks efficiently.
2. **Unique Architecture Feature:** It includes advanced memory management options that enhance system performance and reduce power consumption.
3. **Power Efficiency Data:** This microcontroller offers excellent power efficiency, making it suitable for battery-powered applications.
4. **Certification Standards:** It meets stringent industrial and automotive standards ensuring reliability and safety.
Frequently Asked Questions
Q1: What is the maximum clock frequency supported by the ATMEGA328PB-ANR?
A1: The ATMEGA328PB-ANR supports a maximum clock frequency of up to 16 MHz.
Q2: Is the ATMEGA328PB-ANR compatible with other microcontrollers from the same series?
A2: Yes, it is fully compatible with other microcontrollers from the ATmega series, allowing for easy integration into existing designs.
Q3: In which specific scenarios would you recommend using the ATMEGA328PB-ANR over other microcontrollers?
A3: The ATMEGA328PB-ANR is recommended for applications requiring high precision and reliability, such as medical devices and industrial automation systems, due to its robust performance and certification standards.
